Security Patrol Robot With ATV Base

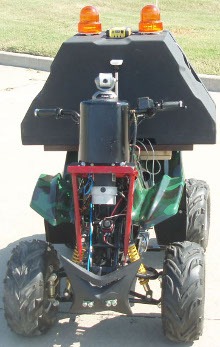

This security patrol robot was created by students at the University of Oklahoma. It can autonomously patrol even challenging locations; it uses as its base an all-terrain vehicle (ATV).


(Security patrol robot University of Oklahoma)

It navigates using an obstacle avoidance system that makes use of sonar sensors on the front and sides of the robot's chassis. It can communicate video and audio wirelessly as it follows a pre-programmed patrol route.

First, a path plan is provided to the ATV planner to best decompose the task into subtasks and then the ATV go ahead and deliberates (plans) what are the suitable behaviors to accomplish each one of them. In other words, a set of checkpoints is provided to the control system as a route for the ATV to go thru. A file containing an array of GPS coordinates and special tasks (waiting time, camera auto pan, hunk horn...etc) is delivered to the planner. The planner reads the file and divides the route into sub-routes, where each one is from the current location to the first unreached location in the array.

After that, the behaviors start executing based on a reactive control, sense-act. At each control instance, the control system senses the world then sends commands to the ATV to act based on the inquired values. The system keeps behaving in that same manner until the submission is accomplished or an emergency status requires change of behavior.
(Development of an Autonomous ATV for Real-Life Surveillance Operations [pdf])


(Security patrol robot video)

University of Oklahoma students Fares Beainy and Sesh Commuri are following a vision established more than a half-century ago by science fiction writers like Philip K. Dick, who wrote about guard robots in his 1955 short story The Hood Maker:

"Halt!" A robot guard appeared, streaking toward them across the field. "Identify yourselves!"

Franklin showed his clip. "I'm Director level. We're here to see the Senator. I'm an old friend."

Automatic relays clicked as the robot studied the identification clip.
(Read more about guard robot)

Security guard robots have also been depicted in science fiction films. Take a look at the autonomous guard robot from Michael Crichton's 1985 film Runaway.


(Security guard robot from Runaway)

From Development of an Autonomous ATV for Real-Life Surveillance Operations (pdf) via hack a day.

Scroll down for more stories in the same category. (Story submitted 10/8/2009)
